Durable, compact, and user-friendly, entry-level model

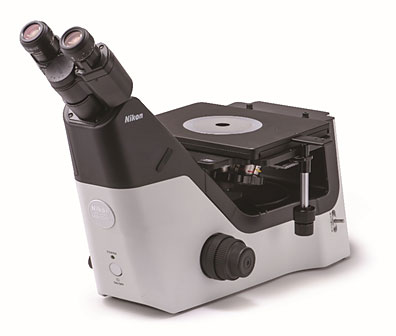

Inverted Metallurgical Microscope ECLIPSE MA100N

March 27, 2017

Nikon Corporation (Kazuo Ushida, President, Tokyo) is pleased to announce the release of ECLIPSE MA100N inverted metallurgical microscope, a compact model suitable for observation and inspection of metal samples, electronic components, and more.
ECLIPSE MA100N is the successor to the ECLIPSE MA100/MA100L entry-level inverted metallurgical microscopes. The newest model offers improved user-friendly observation, usability, and optical performance.

Product information

Swipe horizontally to view full table.

Product Name ECLIPSE MA100N Inverted Metallurgical Microscope
Availability From early April 2017

Product Concept

In recent years, the demand for sample observation and inspection, as well as image data storage and analysis, is increasing in the automotive, electronic, and metal component manufacturing industries. Nikon has developed a compact and easy-to-operate inverted metallurgical microscope to improve the operational efficiency of manufacturing.

Key Features

1. Superior Operability

New component designs, such as the stage handle and aperture diaphragm, allow intuitive operation by users.

2. Compact Space-saving Model

The installation footprint of the new ECLIPSE MA100N is 11% smaller than that of the previous models. Users can install the microscope in locations that cannot accommodate conventional models, expanding its range of applications.

3. LED Illumination

LED illumination reduces energy consumption to 15W, one third of conventional halogen illumination. Further, LED increases illumination lifetime to 30,000 hours, approximately 30 times longer than halogen, reducing the need for frequent lamp replacement. The low variation in color temperature of LED enables stable observation.

Specifications

Swipe horizontally to view full table.

Observation Bright Field
Simple Polarization (with MA-P/A simple polarizer/analyzer set)
Optics CFI60-2 / CFI60
Illumination White LED
Built-in aperture diaphragm
Eyepiece (FOV) 10X (22mm)
15X (16mm)
Stage Plain Stage: 188 (W) x 310mm (D)
Mechanical Stage (when mounted on Plain Stage): Stage moving stroke 126mm (X), 78mm (Y)
Rectangular Stage: 224 (W) x 188.5mm (D)
Stage moving stroke 50mm (X), 50mm (Y)
Power Consumption 15W
Dimensions 280 (W) x 551 (D) x 404 (H) mm

The information is current as of the date of publication. It is subject to change without notice.
