Nikon introduces the ECLIPSE Ni-L Upright Microscope

Achieve more natural observation with a balanced LED light source

May 23, 2023

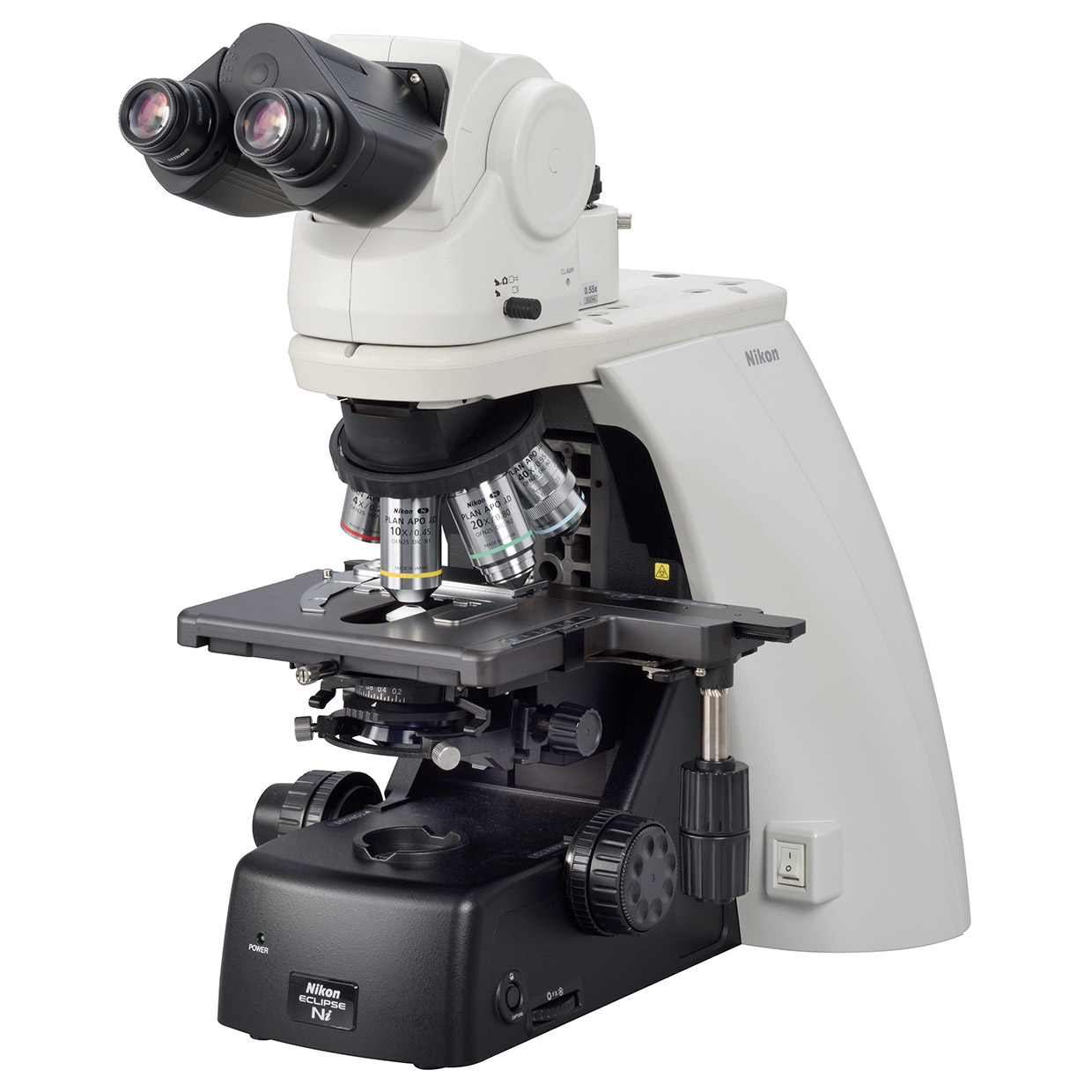

ECLIPSE Ni-L Upright Microscope

TOKYO - Nikon Corporation (Nikon) announced the release of the ECLIPSE Ni-L upright microscope which features specially balanced LED illumination with properties similar to natural light. This results in more accurate displays of the original color rendition of the specimen, making it particularly effective for observation of pathological specimens and cells.

Release Overview

Swipe horizontally to view full table.

Product Name ECLIPSE Ni-L Upright Microscope
Target Release Date May 23, 2023

Development Background

As commonly used brightfield microscopes transition away from halogen bulbs to LED light sources, this gives rise to images with blueish hues due to the unnatural color temperatures of many LED light sources. Nikon has developed the ECLIPSE Ni-L upright microscope equipped with a more balanced natural color LED light source that renders truer microscope images.

Main Features

1. High color reproducibility by adoption of high color-rendering LEDs

Since the color of LED light is stable, color information and images can be achieved with high color reproducibility when imaging specimens using microscope digital cameras and NIS-Elements imaging software. This reduces the need to correct color by color management software and contributes to improved accuracy of image analysis and AI learning.

HE-stained image of human histopathological tissue acquired using the ECLIPSE Ni-L and Digital Sight 10 microscope digital camera.

2. Significant reduction in environmental impact

LED light sources boast a lifespan of approximately 25 times greater*1 than that of halogen light sources, contributing to the reduction of waste materials associated with replacement. Their low power consumption also contributes to the reduction of CO2 emissions within our environment. LED light sources also significantly reduce the maintenance load in terms of light source replacement and potential down time.

  • *1Approx. 50,000 hours, estimated by Nikon standards

3. Eliminates the need to utilize color balance filters

For microscopes using a halogen light source, color adjustments are made using NCB (Neutral Color Balance) filters to correct for the varied color temperatures normally experienced with this technology. Color balanced natural light LEDs eliminate the need to use these filters and therefore also eliminates the risk of human error, such as forgetting to attach or detach color correction filters during critical imaging sessions.

4. Space-saving compact design

Microscopes using a halogen light source are designed with externally attached lamp housings in order to facilitate regular light source replacement. The ECLIPSE Ni-L, due to longer life expectancy of LED light sources, has the illumination built-in resulting in an overall size reduction of 150 mm. This increases the flexibility to choose the most effective observation location to suit your needs.

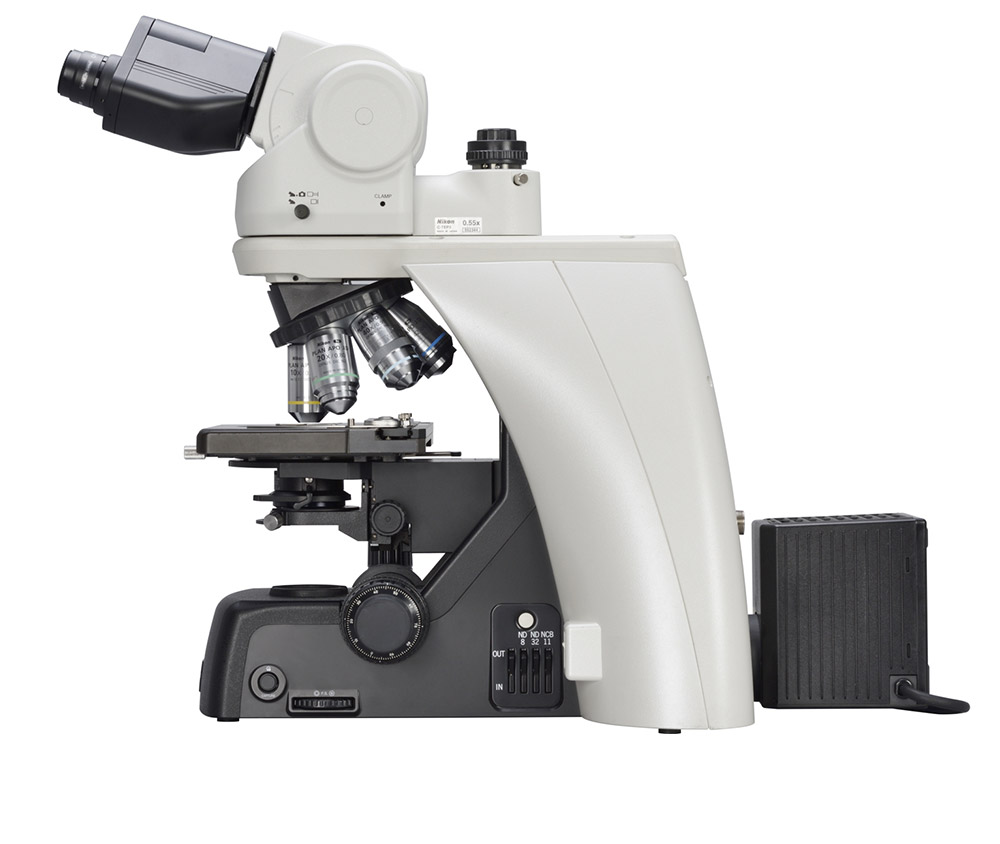

ECLIPSE Ni-U with halogen light source

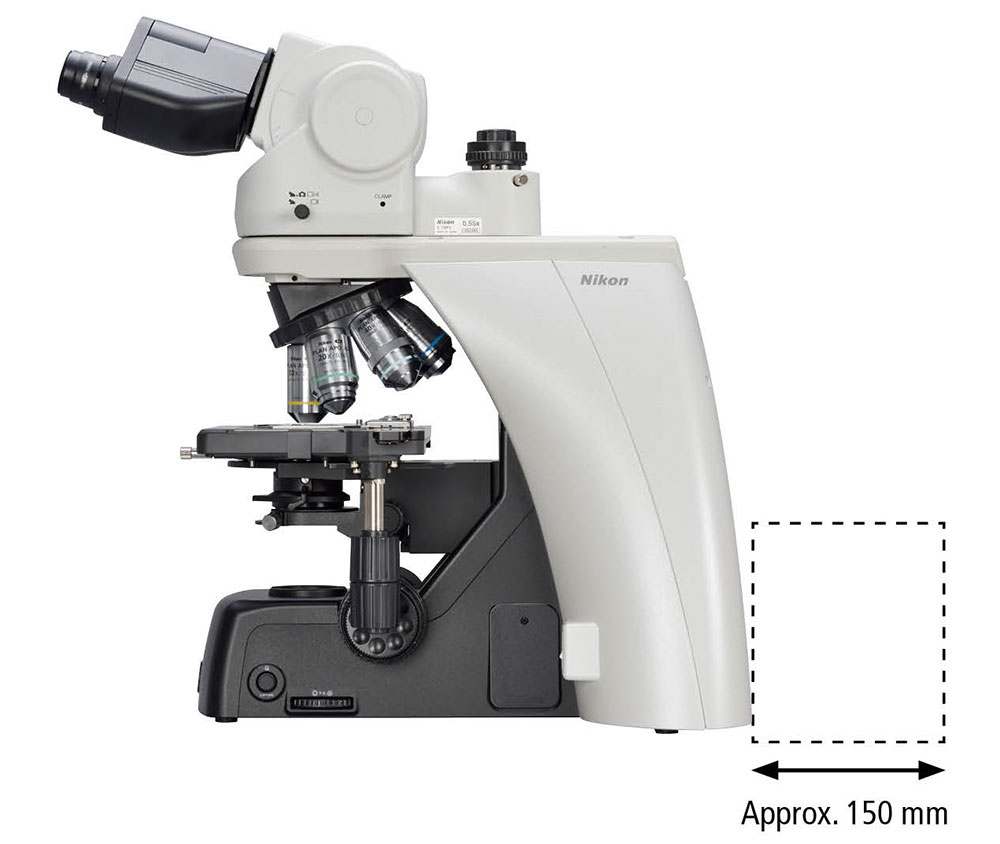

ECLIPSE Ni-L

Main Specifications

Swipe horizontally to view full table.

Optical system CFI60 infinity optical system
Illumination Built-in high color-rendering LED light source*2
50,000 hours of life*3
Eyepieces
  • CFI 10X
  • CFI 12.5X
  • CFI 15X
  • CFI UW 10X
Tubes Ergonomic binocular tube: Inclination angle 10° to 30°, extension up to 40 mm
Binocular tube
Trinocular tube
Nosepieces Manual/motorized nosepieces
Stages Manual stages
Condensers Manual condensers
Observation method Brightfield, epi-fluorescence, phase contrast, differential interference contrast, simple polarization, sensitive color polarization, darkfield
Weight 20 kg
Dimensions (mm) W 320 x H 492 x D 383 (brightfield configuration with ergonomic binocular tube)
  • *2Cannot be used for IR-DIC observation
  • *3Estimated value based on Nikon standards

The information is current as of the date of publication. It is subject to change without notice.
