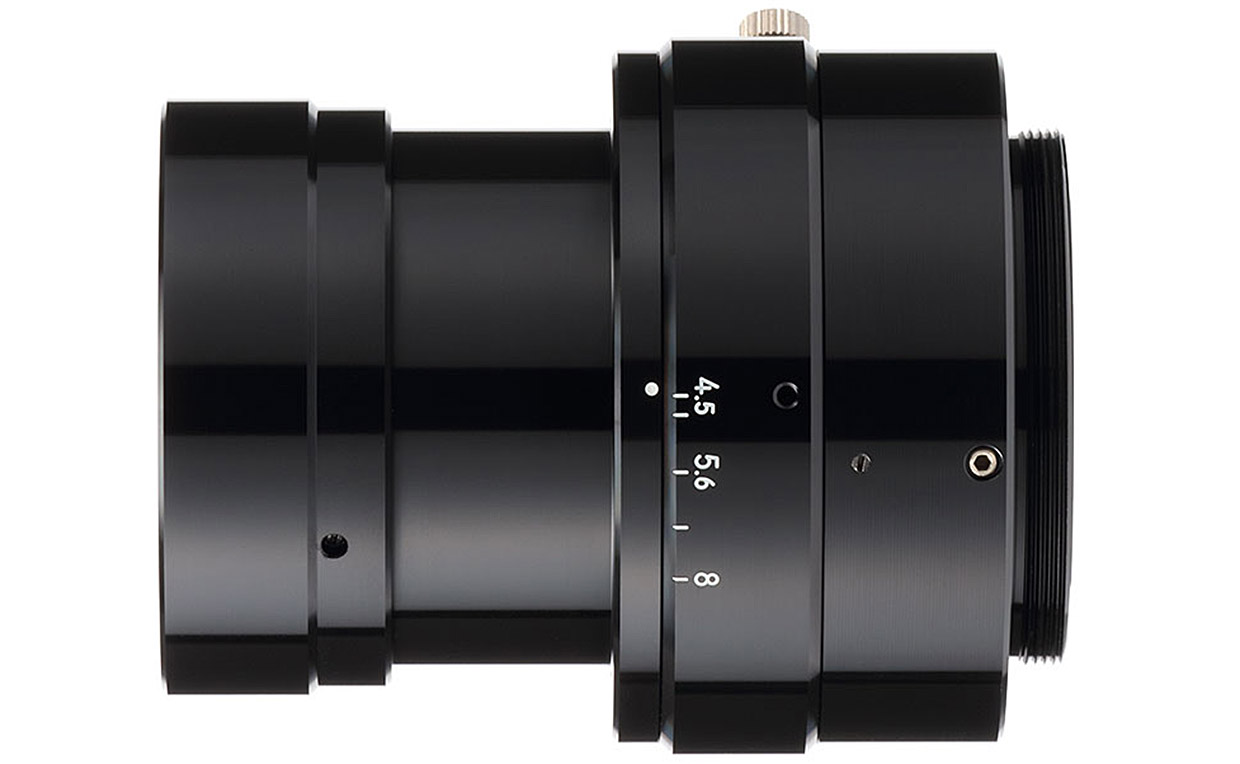

Rayfact XG Series
- Magnification scale
- Image size
- F Number
- -0.35 – -1.4x
- Φ86.4 mm
- F4.5
Features
- 5 models of fixed magnification types available: (-0.35x, -0.5x, -0.7x, -1x, -1.4x)
- Compatible with high-resolution large line sensor cameras (5 µm x 16K)
- Good performance and uniformity from the center to the periphery
- Equipped with a rotating mechanism to align the optimal performance area with line sensors
- Optional adapter barrels available to support different camera mounts
Applications
- Defect inspections of high-performance films
- Defect inspections in flat panel display (FPD) manufacturing processes
- Defect inspections of printed materials and sheets
Specifications
Rayfact XG0.35x / XG0.5x / XG0.7x / XG1x / XG1.4x
Main Specifications
Swipe horizontally to view full table.
| Product | Rayfact XG0.35x | Rayfact XG0.5x | Rayfact XG0.7x | Rayfact XG1x | Rayfact XG1.4x |
|---|---|---|---|---|---|
| Model | L-OFM035030MN | L-OFM050037MN | L-OFM070046MN | L-OFM100055MN | L-OFM140063MN |
| Focal length [mm] | 125.3 | 125.4 | 125.5 | 125.7 | 125.9 |
| Magnification scale | -0.35x | -0.5x | -0.7x | -1x | -1.4x |
| F Number (∞) | F4.5 | ||||
| Wavelength range [nm] | 400 – 700 | ||||
| Image circle [mm] | Φ86.4 | ||||
| Mount size*3 | M45 (P=0.75) | ||||
| Attachment size | Front: M46 (P=0.75), Rear: M40.5 (P=0.5) | ||||
| Diameter/length [mm]*1 | Φ60 x 70 (from mount datum face) |
Φ60 x 69.9 (from mount datum face) |
Φ60 x 70 (from mount datum face) |
Φ60 x 70 (from mount datum face) |
Φ60 x 69.9 (from mount datum face) |
| Weight [g] | Approximately 340 | ||||
Optical Specifications
Swipe horizontally to view full table.
| NA | ≧0.03 | ||||
|---|---|---|---|---|---|
| Object-to-image distance [mm] | 658.4 | 570.0 | 522.2 | 506.2 | 520.4 |
| Working distance [mm] | 452.3 | 344.7 | 273.0 | 219.0 | 182.8 |
| Flange-to-image distance [mm] | 136.1 | 155.4 | 179.2 | 217.2 | 267.7 |
| Distortion [%]*2 | -0.2 | -0.2 | +0.1 | +0.0 | -0.0 |
| Relative illumination [%]*2 | 59.8 | 66.5 | 73.6 | 82.2 | 90.0 |
- *1Dimensions exclude protrusions such as lock screws.
- *2Value at maximum image height (Y'=43.2 mm) and F4.5.
- *3To attach to a camera, use the appropriate extension barrel and camera mount parts that fit the camera mount.
- Specifications unless any specific instructions are stated is at the standard magnification.
- Specifications are subject to change without prior notice.
