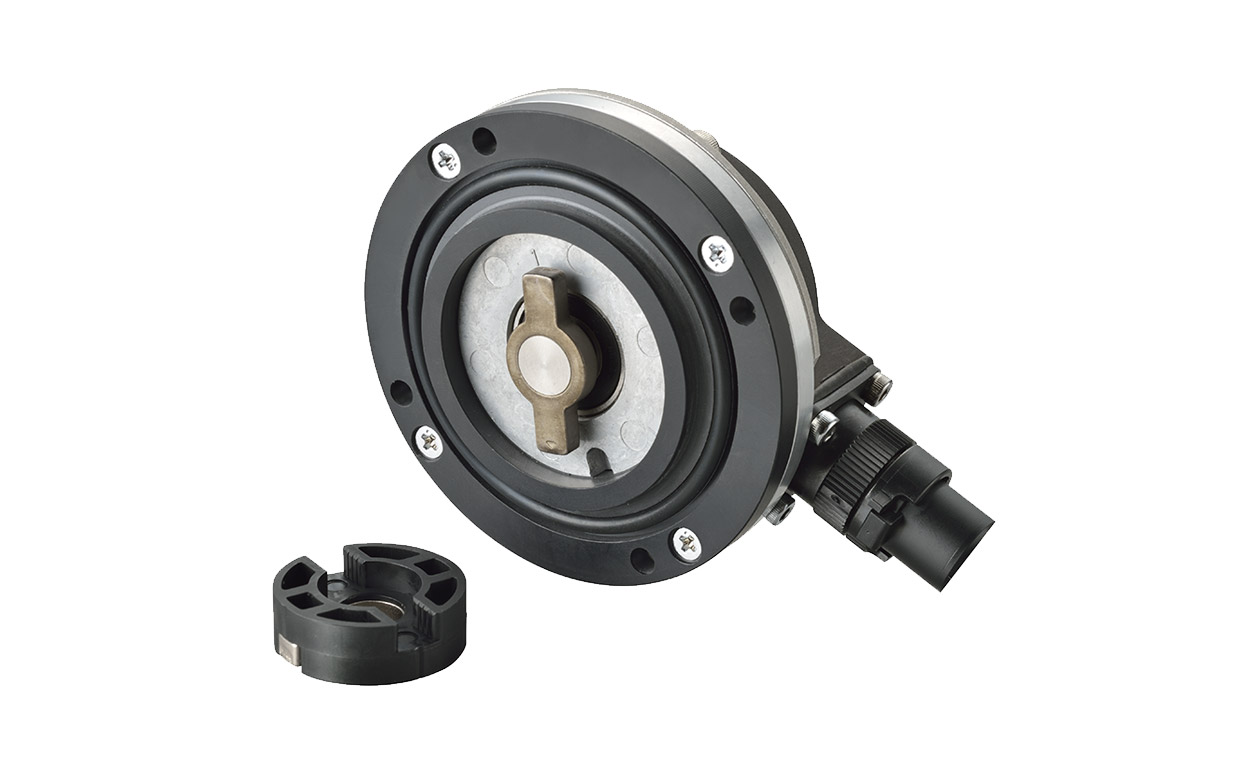

MAR-HX60MFA ⌀79 Oldham coupling

Multi-Turn Battery-Free Absolute Encoder

Super mid-range series multi-turn Oldham coupling model to suit a wide range of applications

Nikon absolute encoders (rotary encoders) incorporate proprietary optical and M-sequence absolute pattern technologies to combine high reliability with compact dimensions. Used in a broad range of industrial machinery, including industrial robots for automotive production lines and machine tools, they have won widespread acclaim as standard sensors capable of detecting the rotational displacement of robot arms and other equipment as absolute values.


Features

High resolution

High operating temperatures

Applications

  • Ideal for AC servo motors used in industrial robots, service robots, pick-and-place machine, and other equipment.

Specifications

Swipe horizontally to view full table.

Model MAR-HX60MFA ⌀79 Oldham coupling
Resolution Single-turn Max.27bit (134,217,728 positions/rev.)
Multi-turn signal Max. 16 bit (65,536 revolutions)
Responsive revolution speed With mains power 6,000 min-1
With backup battery 6,000 min-1
Power source voltage With mains power 5 V DC (±10%)
With backup battery －
Current used During normal operations 80 mA (TYP)
Using external battery －
Operating temperature range ‒20 to +85°C
Moment of inertia for shaft 22.2 × 10-7 kg·m2
Allowed rotational angular velocity 1.0 × 105 rad/sec2
Communication protocol A-format®
Transmission standard EIA standard RS-485 compliant
Transmission method NRZ half-duplex serial communications
Baud rate 2.5 Mbps (Optional: 4 Mbps to 16 Mbps)
Number of signal wires 4
Memory access development space 3.75k bit (240 × 16 bit)
Temperature sensor Supported
Bus connectivity Supported
Bus connectivity options Encoders can be connected for up to 8 axes.
Dimensions External diameter (⌀) 79 mm
Height 34.4 mm (TYP)

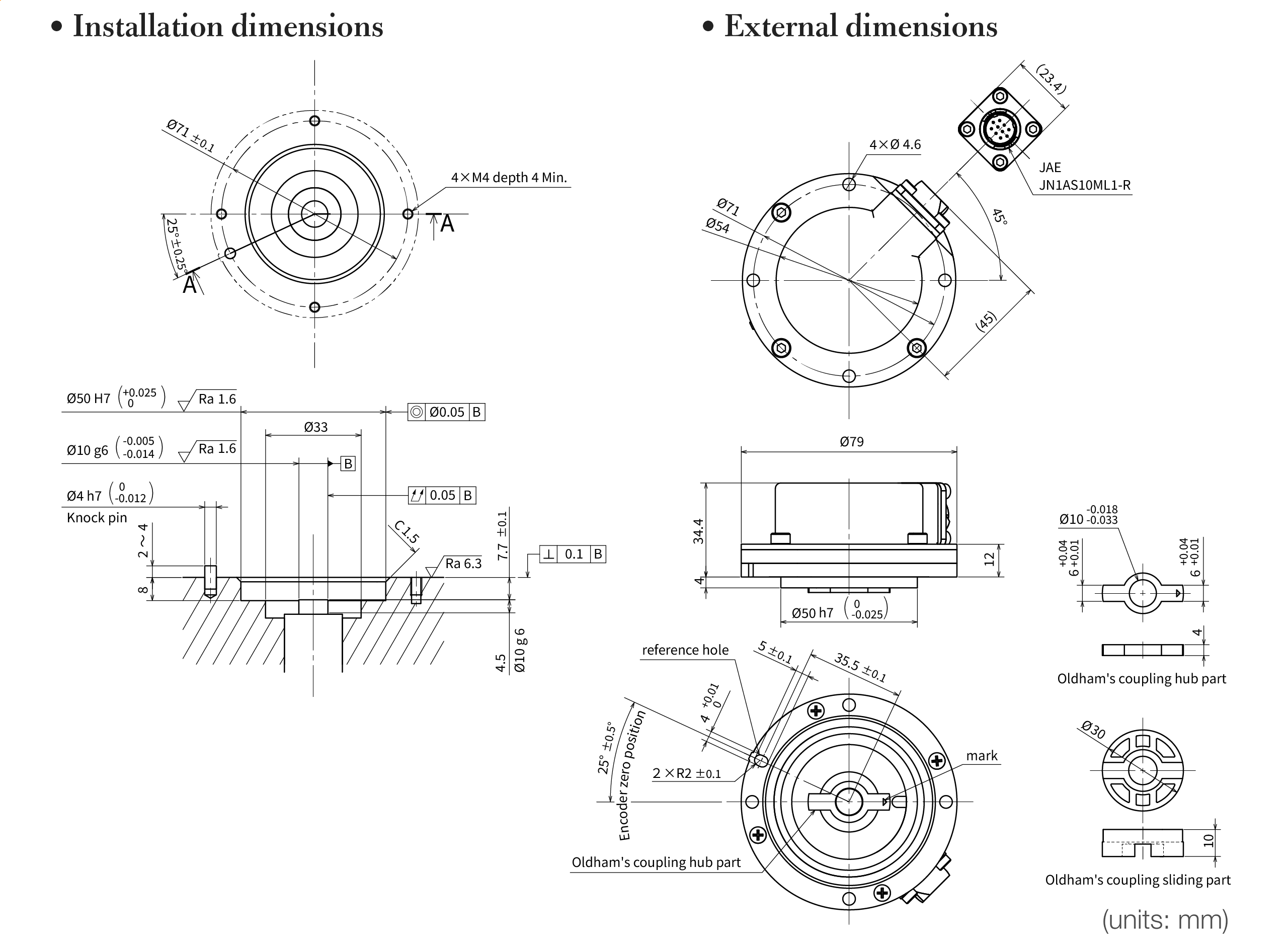

Dimensional Drawings

Absolute Encoders
