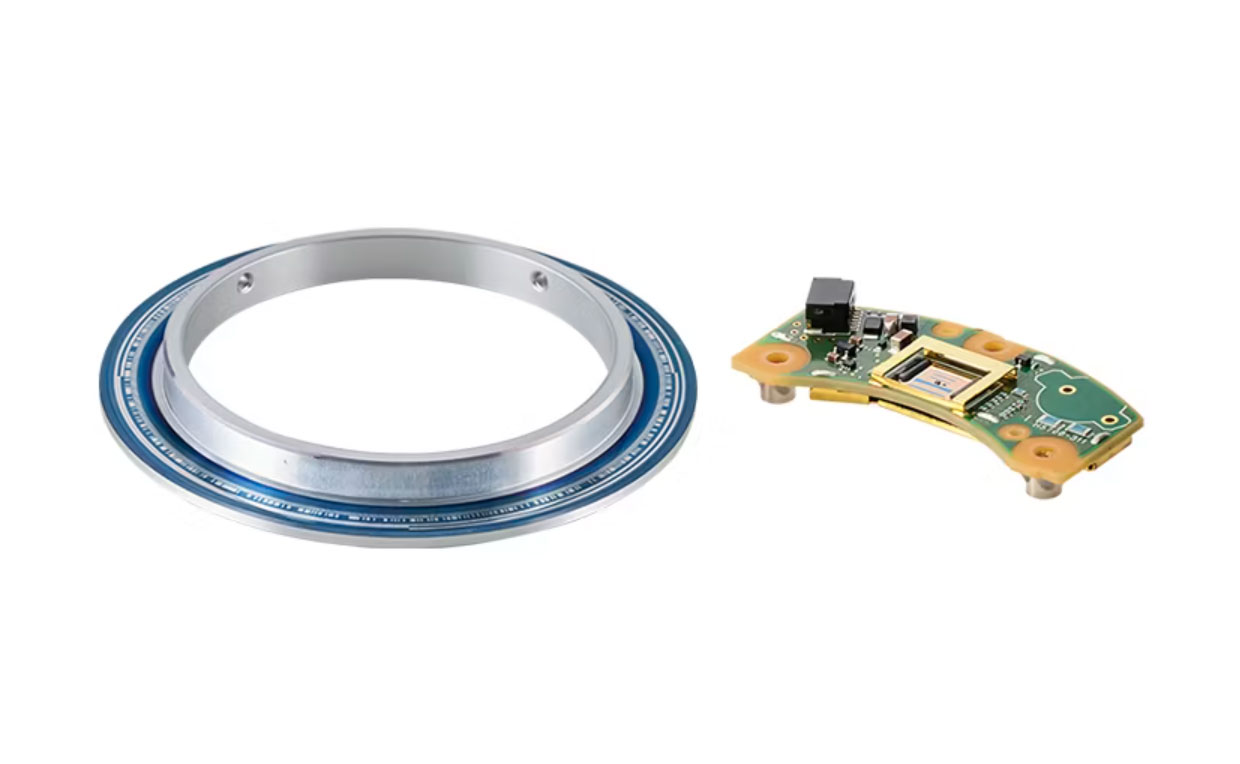

MAR-MCX63A
Hollow-Shaft Multi-Turn Absolute Encoder
Large inner diameter hollow-shaft absolute encoder: Successor to the MC43A
Nikon absolute encoders (rotary encoders) incorporate proprietary optical and M-sequence absolute pattern technologies to combine high reliability with compact dimensions. Used in a broad range of industrial machinery, including industrial robots for automotive production lines and machine tools, they have won widespread acclaim as standard sensors capable of detecting the rotational displacement of robot arms and other equipment as absolute values.
Features
1. High resolution
Provides up to 24-bit resolution.
2. High operating temperatures
The MAR-MCX63A features a guaranteed operating temperature of 105°C.
Improved resistance to various environment parameters increases flexibility in motor and equipment design.
Applications
- Ideal for hollow-shaft actuators used in multi-joint robots
- The lineup now includes a large inner diameter hollow-shaft encoder (inner diameter: ⌀63 mm, outer diameter: ⌀113 mm, thickness: approx. 12 mm).
Specifications
Swipe horizontally to view full table.
| Model | MAR-MCX63A | |
|---|---|---|
| Resolution | Single-turn | 20 bit (1,048,576 positions/rev.) Optional: 22 bit, 24 bit, 27 bit |
| Multi-turn signal | 16 bit (65,536 revolutions) | |
| Responsive revolution speed | With mains power | 6,000 min-1 |
| With backup battery | 6,000 min-1 | |
| Power source voltage | With mains power | 5 V DC |
| With backup battery | 3.6 V DC | |
| Current used | During normal operations | 75 mA (TYP) |
| Using external battery | 55 μA (TYP) | |
| Operating temperature range | ‒20 to +105°C | |
| Moment of inertia for shaft | 3.59 × 10-5 kg·m2 | |
| Allowed rotational angular velocity | 1.0 × 105 rad/sec2 | |
| Communication protocol | A-format® | |
| Transmission standard | EIA standard RS-485 compliant | |
| Transmission method | NRZ half-duplex serial communications | |
| Baud rate | 2.5 Mbps (Optional: 4 Mbps to 16 Mbps) | |
| Number of signal wires | 4 (Optional: 6) | |
| Memory access development space | 3,840 bits (240 addresses × 16 bits) | |
| Temperature sensor | Supported | |
| Bus connectivity | Supported | |

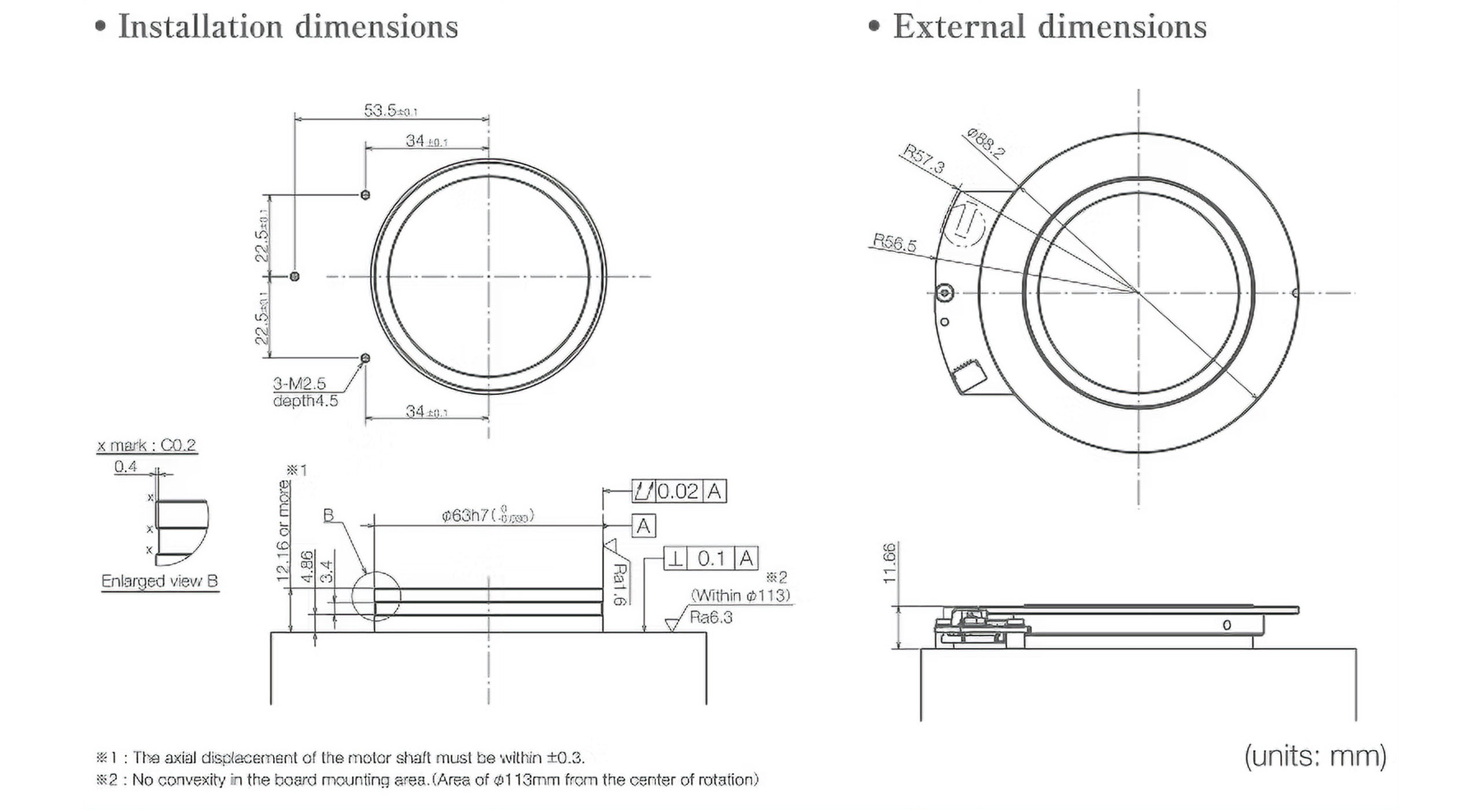

Dimensional Drawings
