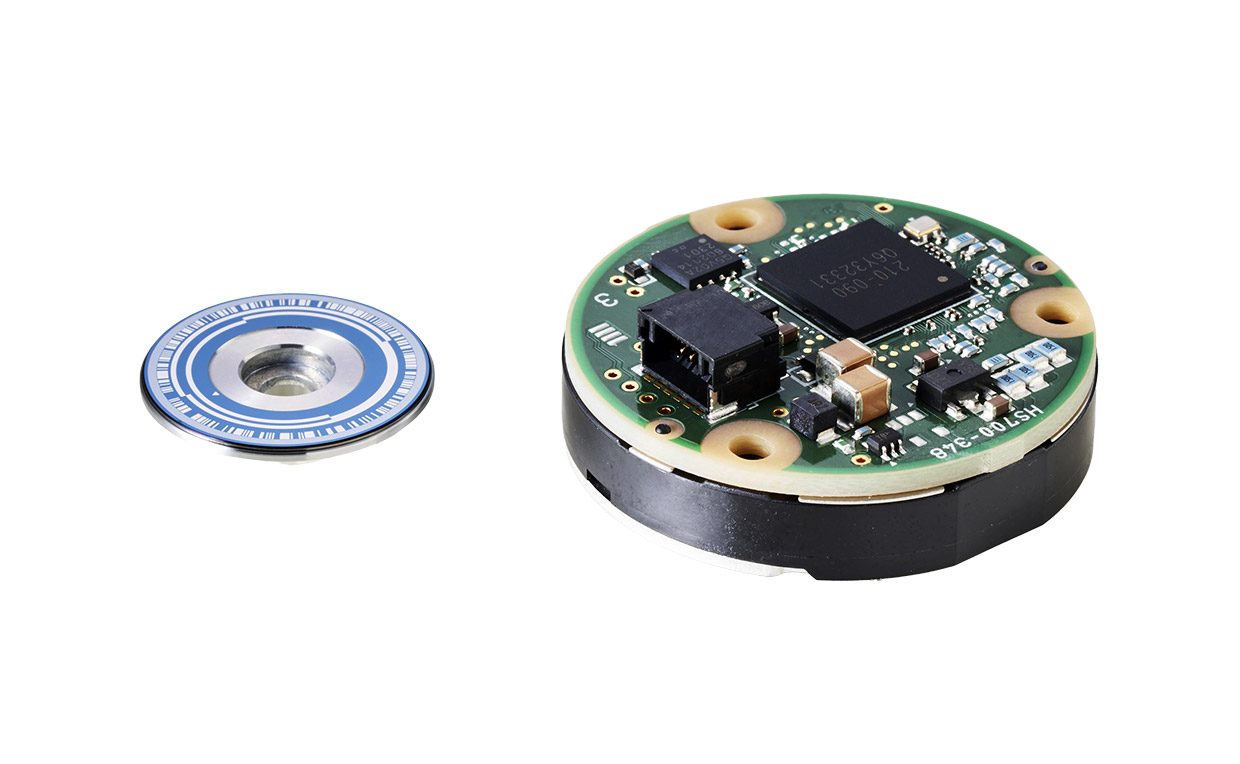

SAR-ML700A
Single-Turn Absolute Encoder
Single-Turn Absolute Encoder
Model incorporating predictive maintenance function to minimize the risk of sudden failure-induced equipment shutdowns
Features
1. Predictive maintenance function
Incorporates a new predictive maintenance function using the compatible communication standard (A-format®)*. This allows early detection of potential failures and provides advance notification of the need for parts replacement and maintenance timing for industrial robots, helping to minimize the risk of sudden failure-induced equipment shutdowns.
- *A-format® is a registered trademark of Nikon Corporation.
2. Proprietary angle accuracy self-correction function
3. Product design incorporating interchangeability with existing models
Designed to be interchangeable with existing Nikon absolute encoders, it can be installed without design changes in mounting parts.
Specifications
Swipe horizontally to view full table.
| Model | SAR-ML700A | |
|---|---|---|
| Resolution | Single-turn | Max. 27 bit (134,217,728 positions/rev.) |
| Multi-turn signal | Max. 16 bit (65,536 revolutions) | |
| Responsive revolution speed | With mains power | 8,000 min-1 |
| With backup battery | 8,000 min-1 | |
| Power source voltage | With mains power | 5 V DC (±10%) |
| With backup battery | － | |
| Current used | During normal operations | 105 mA (TYP) |
| Using external battery | － | |
| Operating temperature range | ‒20 to +105°C | |
| Moment of inertia for shaft | 3.9 × 10-8 kg·m2 | |
| Allowed rotational angular velocity | 1.0 × 105 rad/sec2 | |
| Communication protocol | A-format® | |
| Transmission standard | EIA standard RS-485 compliant | |
| Transmission method | NRZ half-duplex serial communications | |
| Baud rate | 2.5 Mbps (Optional: 4 Mbps to 16 Mbps) | |
| Number of signal wires | 4 (Option: 6) | |
| Memory access development space | 3.75k bit (240 × 16 bit) | |
| Temperature sensor | Supported | |
| Bus connectivity | Supported | |
| Bus connectivity options | Encoders can be connected for up to 8 axes. | |
| Dimensions | External diameter (⌀) | 35 mm |
| Height | 12.46 mm (TYP) | |

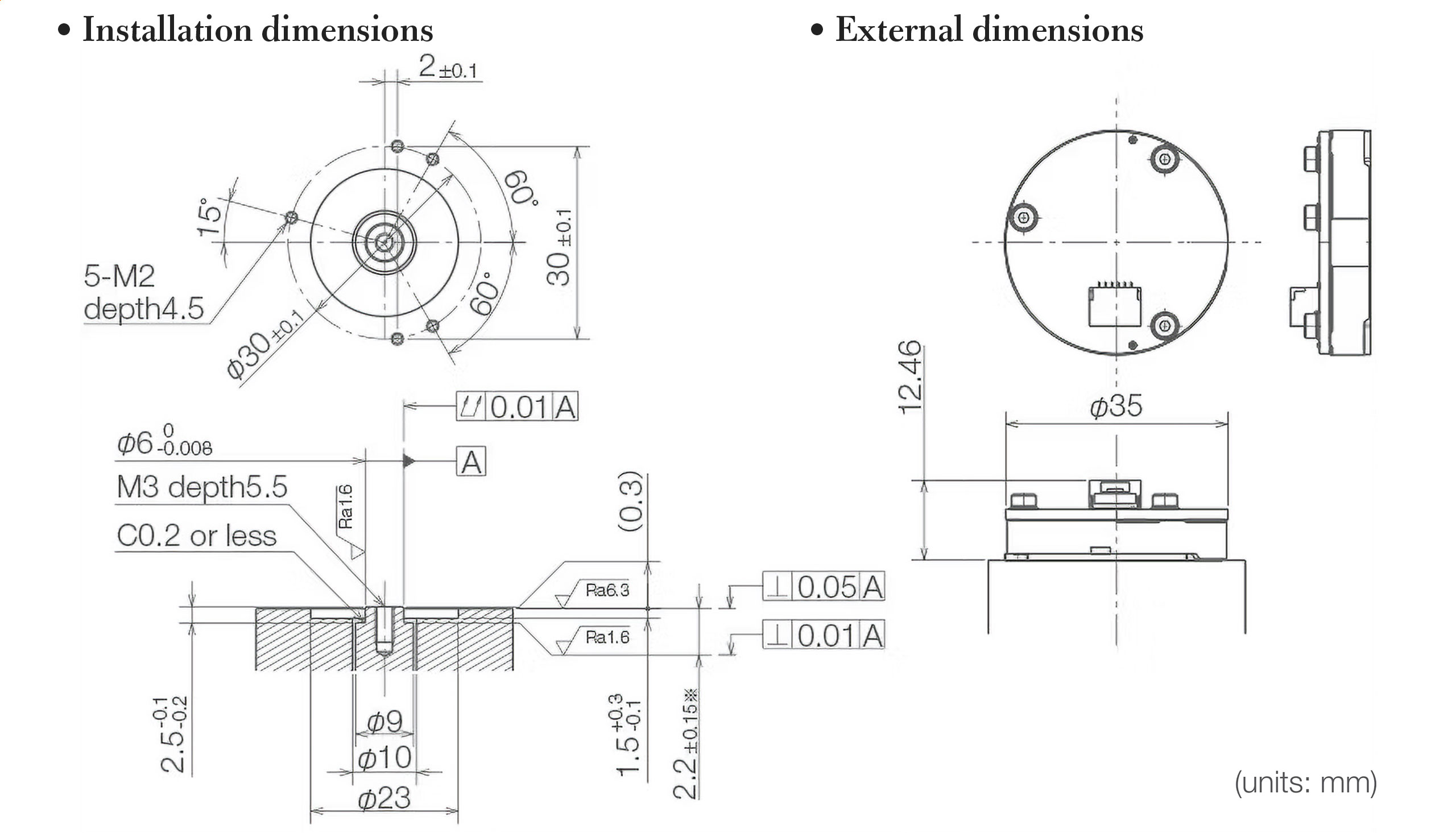

Dimensional Drawings
