Nikon Introduces 7x50CF WP GLOBAL COMPASS Binoculars

October 1, 2015

Nikon Vision Co., Ltd., a subsidiary of Nikon Corporation, is pleased to announce the release of the 7x50CF WP GLOBAL COMPASS binoculars. A global compass by Suunto is now employed for the 7x50CF WP Compass binoculars, that have gained an excellent reputation as marine binoculars over a long period of time.

As with the existing model, these are waterproof, nitrogen-gas-filled binoculars and are of the user-friendly centre focus type. The long eye relief design makes them easy to use even for eyeglass wearers. Multilayer-coated lenses and the 50mm effective diameter of the objective lens ensure a bright view. What's more, thanks to the built-in global compass, you can confirm directions accurately regardless of where you are, because it is designed to be used in both the Northern and Southern Hemispheres. A floating strap is provided as a standard accessory.

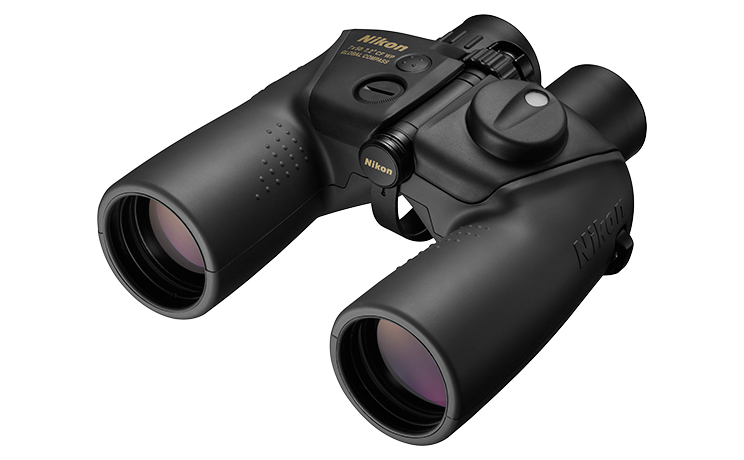

7x50CF WP GLOBAL COMPASS

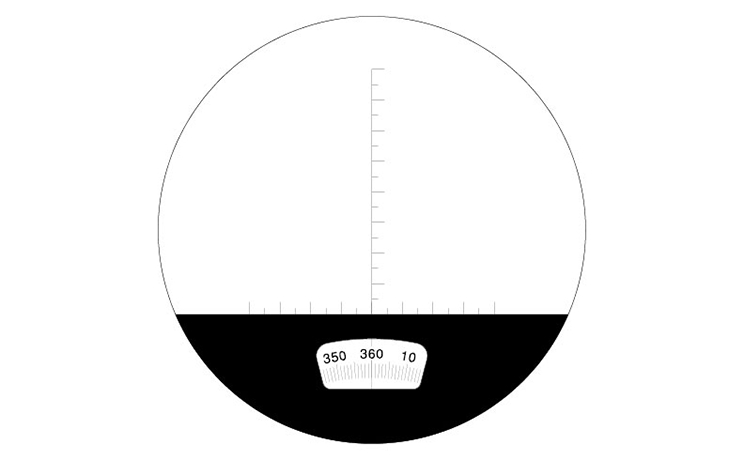

Built-in global compass with illuminator and scale:
You can measure dimensions or distances if you know one of the values.

Key Features

  • Quick, easy-to-use central focusing system
  • Waterproof (up to 1m/3.3 ft. for 5 minutes) and fog-free with O-ring seals and nitrogen gas
  • Built-in global compass with illuminator and scale
  • Long eye relief design ensures a clear field of view, even for eyeglass wearers
  • Multilayer-coated lenses for bright images
  • Rubber armouring for shock resistance and a firm, comfortable grip
  • Floating strap provided
  • Can be fixed to a tripod using optional tripod adaptor, TRA-2 or TRA-3

Specifications

Swipe horizontally to view full table.

7x50CF WP GLOBAL COMPASS
Magnification (x) 7
Objective diameter (mm) 50
Angular field of view (Real/degree) 7.2
Angular field of view (Apparent/degree) 47.5
Field of view at 1,000m (m) 126
Field of view at 1,000 yd. (ft.) 377
Exit pupil (mm) 7.1
Relative brightness 50.4
Eye relief (mm) 22.7
Close focusing distance (m/ft.) 10/32.8
Length (mm/in.) 193/7.6
Width (mm/in.) 202/8.0
Depth (mm/in.) 81/3.2
Weight (g/oz.) 1130/39.9
Interpupillary distance adjustment (mm) 56-72
Type Porro
  • Note:Apparent field of view is calculated based on the ISO14132-1:2002 standard.
    tan ω' = Γ x tan ω
    Apparent field of view: 2ω', Real field of view: 2ω, Magnification: Γ

The information is current as of the date of publication. It is subject to change without notice.
