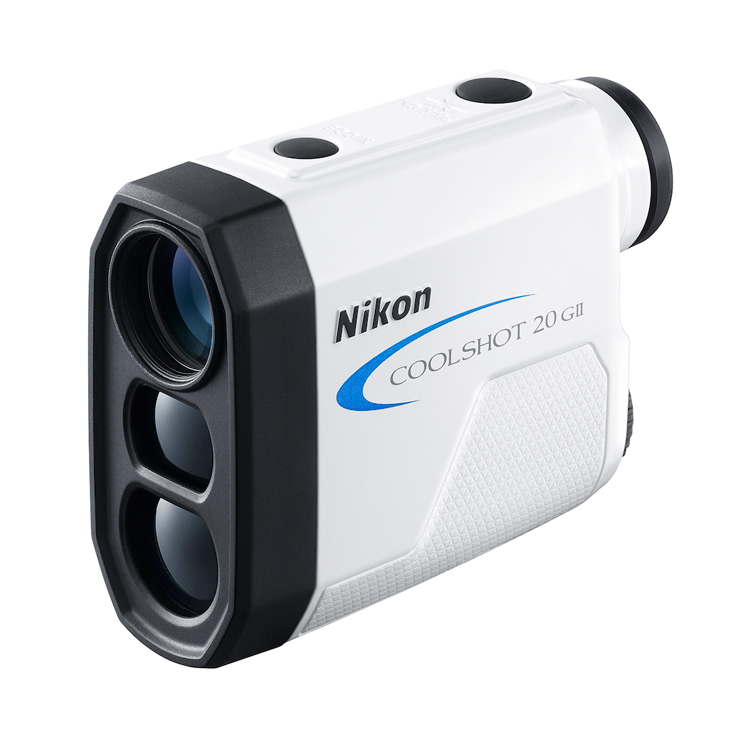

Nikon introduces the COOLSHOT 20 GII Laser Rangefinder

March 13, 2019

TOKYO - Nikon Vision Co., Ltd., (Nikon Vision), a subsidiary of Nikon Corporation (Nikon), is pleased to announce the release of a new portable Laser Rangefinder, the COOLSHOT 20 GII, Nikon's small, lightweight model among the Nikon Laser Rangefinder COOLSHOT series. But there's nothing small or lightweight about its performance. It easily captures your target with its 6x multicoated lenses. The measurement range is from 5 to 730m (6 to 800 yd.), with the display showing the distance every 1 metre/yard.

To top it all, the COOLSHOT 20 GII employs the First Target Priority algorithm, which is highly effective when golfing for measuring the distance to a flagstick on a green with woods in the background. Also, keeping the power button depressed enables continuous measurement for up to approx. 8 seconds.

Key Features

Compact, lightweight (approx. 130g) body
Measurement range: 5-730m/6-800yd.
First Target Priority algorithm for displaying the distance to the closest subject when measuring overlapping subjects
Single or continuous measurement (up to 8 seconds). If single measurement fails, it automatically extends the measurement until succeeding for up to 4 seconds. Keeping the power button depressed enables continuous measurement for up to approx. 8 seconds.
High-quality 6x monocular with multilayer coating for bright, clear images
Long eye relief design affords eyeglass wearers easy viewing
Dioptre adjustment function
Rainproof — JIS/IEC protection class 4 (IPX4) equivalent
Wide temperature tolerance: -10°C to +50°C/14°F to 122°F

Specifications

Swipe horizontally to view full table.

	COOLSHOT 20 GII
Measurement range (actual distance)	5-730m/6-800 yd.
Distance display (increment)	Every 1m/yd.
Accuracy* (actual distance)	±1m/yd. (shorter than 100m/yd.) ±2m/yd. (100m/yd. and over)
Magnification (x)	6
Effective objective diameter (mm)	20
Actual field of view (°)	6
Exit pupil (mm)	3.3
Eye relief (mm)	16.7
Dimensions (LxHxW) (mm/inch)	91 x 73 x 37/3.6 x 2.9 x 1.5
Weight (excluding battery) (g/oz.)	130/4.6
Power source	CR2 lithium battery x 1 (DC 3V) Automatic power shut-off (after approx. 8 sec. unoperated)
Waterproof structure	Rainproof — JIS/IEC protection class 4 (IPX4) equivalent (under Nikon's testing conditions)
Laser classification	IEC60825-1: Class 1M/Laser Product FDA/21 CFR Part 1040.10: Class I Laser Product
Electromagnetic compatibility	FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003
Environment	RoHS, WEEE

*Under Nikon's measurement conditions.

The specifications of the product may not be achieved depending on the target object's shape, surface texture and nature, and/or weather conditions.
