Nikon releases the C3 eMotion, intelligent actuator unit for robotic joints of collaborative robot

Contributing to more flexible and easier robot design

December 11, 2019

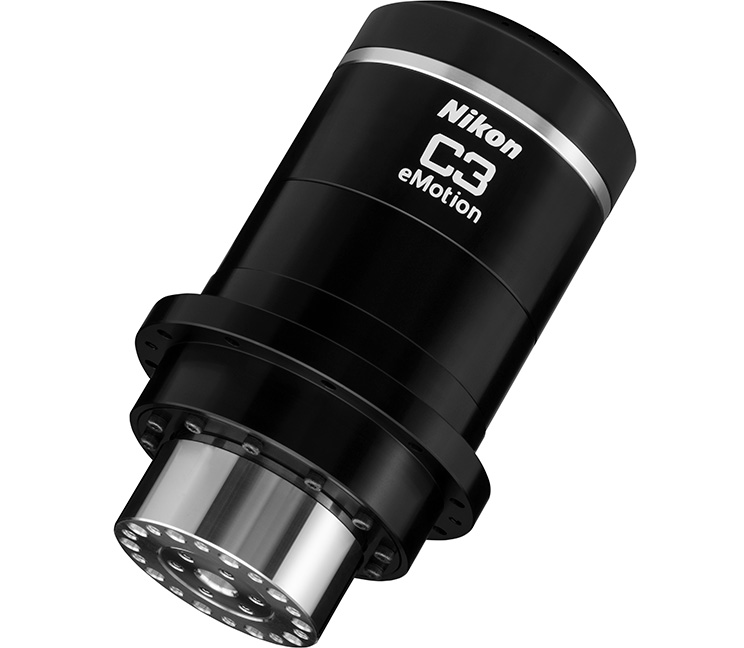

C3 eMotion unit IAU-60

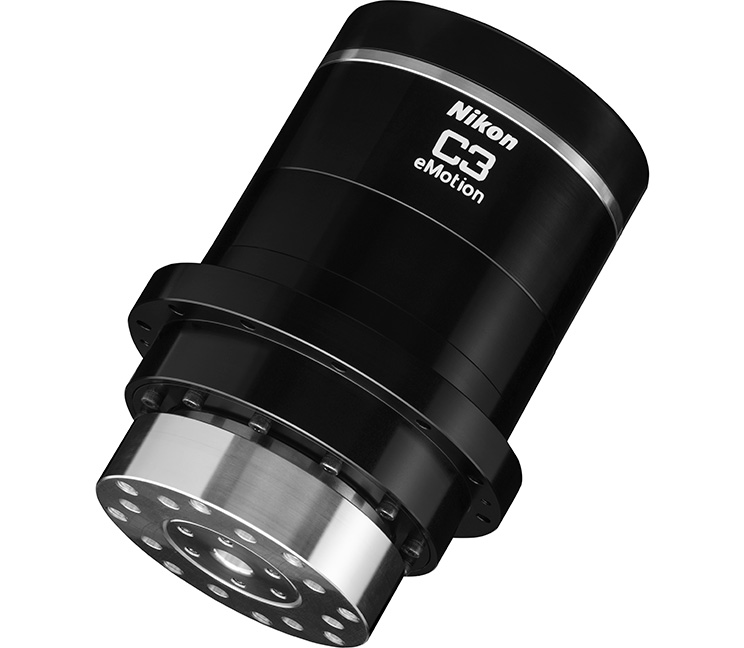

C3 eMotion unit IAU-200

TOKYO - Nikon Corporation (Nikon) is pleased to announce the release of two new C3 eMotion intelligent actuator units, each of which combines a motor, speed reducer, motor driver, brake and encoders together in one package.
The C3 eMotion is a robotic joint of collaborative robot, and utilizing multiple C3 eMotion units together facilitates easier building of robots by manufacturers as well as a wide range of other engineers—even those without know-how in robot design.
Moreover, the C3 eMotion operates under Nikon's proprietary double-encoder arrangement (containing two encoders), which enables detection of external forces and robot operation stoppage in response, direct teaching in which the robot can be made to learn commands via direct manipulation by human users, and a wide range of other useful functions.
This latest Nikon release includes two new units that differ in terms of size, torque and other factors: the IAU-60 and the IAU-200. The lineup of the series will be expanded in the future.Nikon plans to showcase both models at iREX2019 (International Robot Exhibition 2019, December 18–21, 2019 at Tokyo Big Sight).

Product Information

Product Name C3 eMotion intelligent actuator unit (IAU-60)
C3 eMotion intelligent actuator unit (IAU-200)
Availability April 1, 2020

Manufacturers expect great things from robots, which will function as future workers in production facilities, operating alongside human workers to cooperatively complete tasks. However, sophisticated skills and know-how are required to build robots, as they comprise a wide array of components such as motors, speed reducers, motor drivers, brakes and encoders. With the C3 eMotion, Nikon combines outstanding encoders as well as other parts into single-package robotic joint units. Moreover, the C3 eMotion takes a double encoder structure, Nikon's proprietary approach featuring an encoder on the input side (motor) and an encoder on the output side (output shaft). Within robotic joints, the motor revolves to drive the shaft via a speed reducer and other components, and in most joint layouts an encoder is present only on the motor end of the structure. However, Nikon has designed an encoder on the output (decelerated) shaft side as well, enabling detection of slight differences in rotational speed between the input and output shaft ends and thus detection of external force applied to the actuator.

The "C3" in C3 eMotion stands for "connect, control, cooperate": "connect" refers interconnection of multiple C3 eMotion units, "control" to assembly and control of the robot, and "cooperate" to cooperative production operations between humans and robots. Even though robot design, control and similar are quite challenging under normal circumstances, Nikon strives to make these more accessible to everyone.

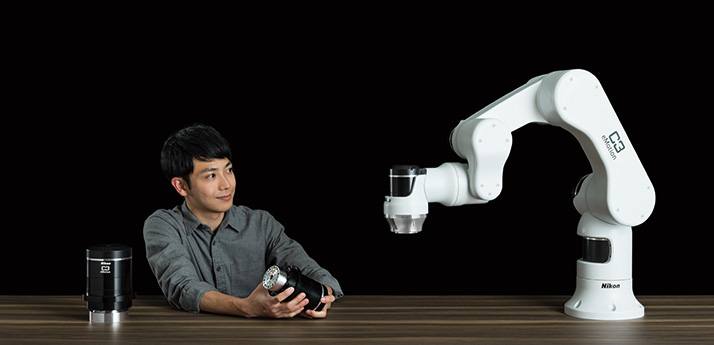

Example usage of the C3 eMotion: three IAU-60 units and three IAU-200 units combined to make a six-axis robot

Main Features

1. Contributing to more flexible and easier robot design

Using multiple C3 eMotion in a robot enables to configurate to greater or less numbers of robotic joints.
C3 eMotion helps to design the customized robot on user demand such as extend the robot's arm length.
In addition, the use of a dedicated robot controller makes robot control easier. These features make robot design possible even for users who do not possess know-how on robot control technologies.

2. High safety performance

The double-encoder structure enables detection of slight changes during robot operation, which makes possible detection of external forces applied and reflects these irregularities in operations. For example, if a human worker bumps into the robot while it is working, the robot can immediately detect the impact (external force) and stop operations.

3. Operations with direct teaching

The double-encoder structure enables responses to detected external forces, it is possible for human operators to directly manipulate the robot and thus program operations through the direct-teaching.

4. High-accuracy positioning performance

High-performance encoders can be installed on both the input- and output-shaft ends using the double-encoder structure, which makes it possible to monitor rotation speeds on both shaft ends and convey positioning information with high accuracy, thus achieve high-accuracy positioning performance.

Main specifications

Swipe horizontally to view full table.

Model number IAU-60 IAU-200
Rated voltage 48 V
Peak torque 55 N·m 200 N·m
Rated torque 55 N·m 95 N·m
Rated speed 20 min-1 15 min-1
Torque detection range
F.S. (Full-Scale)
30N·m 130N·m
Torque detection accuracy ±5F.S. %
Encoder accuracy ±15 arc sec
Gear ratio 81 101
Brake holding torque (input shaft) 0.62 N·m 2.8 N·m
Encoder resolution Input shaft: multi-turn ABS (24-bit single turn, 16-bit multi turn)
Output shaft: single-turn ABS (24-bit single turn)
Driver Built-in actuator
Communication EtherCAT CiA 402*
Diameter 88 mm 119 mm
Length 173.8 mm 195.9 mm
Weight 2.5 kg 5.4 kg
Operating temperature 0–40°C (no condensation)
Storage temperature 0–50°C (no condensation)
  • *EtherCAT is a licensed and patented technology of the German company Beckhoff Automation GmbH & Co. KG, and a registered trademark of the same company.

The information is current as of the date of publication. It is subject to change without notice.
