Nikon Introduces New Laser Rangefinder "Laser 550A S"

March 1, 2008

Nikon Vision Co., Ltd., a subsidiary of Nikon Corporation, is pleased to present the Laser 550A S, a laser rangefinder with angle compensation technology. With its external LCD display, this laser rangefinder instantly provides actual distance, angle, horizontal distance, height, and vertical separation (difference in height between two targets).

Since Nikon released its first Laser Rangefinders in 1999, they have been well accepted by wide variety of users, from golfers to hunters. Our new Laser 550A S has been engineered to comply with their request for angle compensated distance measurement. With its built-in inclinometer, Laser 550A S gives instant readings on the target, from actual distance to angle, height, and horizontal distance, even vertical separation between two targets. This information allows a user to take a shot with more confidence, whether in golfing or hunting.

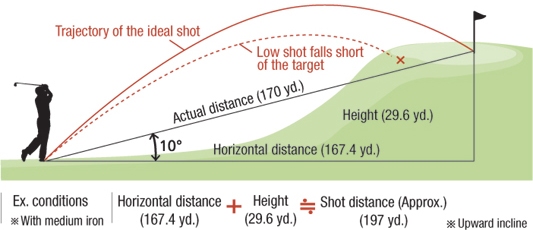

Measurement example (in golf use):

Key Features

Nikon Laser Rangefinder Laser 550A S Specifications

Laser 550A S
Measurement range Distance:10-500m/11-550 yd./33-999 ft.(*999 ft.: 304.5m/333 yd.)
Angle: ±89º
Distance display [Internal Display]
Act (Actual Distance):
every 0.5m/yd., 1.0 ft. (shorter than 100m/yd./ft.)
every 1.0m/yd., 1.0 ft. (greater than 100m/yd./ft.)
Hor (Horizontal Distance) and Hgt (Height):
every 0.2m/yd., 0.5 ft. (shorter than 100m/yd./ft.)
every 1.0m/yd., 1.0 ft. (greater than 100m/yd./ft.)
Ang (Angle):
every 0.1º (less than 10º)
every 1.0º (more than 10º)
  • *Downward angle from the horizontal line: with display "-"
[External Display]
Act (Actual Distance): every 0.5m/yd., 1.0 ft.
Hor (Horizontal Distance) and Hgt (Height):every 0.2m/yd., 0.5 ft.
Ang (Angle): every 0.1º
Magnification (x) 6
Effective objective diameter (mm) 21
Actual field of view (º) 6.0
Exit pupil (mm) 3.5
Eye relief (mm) 18.2
Dimensions (L x H x W) (mm) 130x69x45
Weight (g) 210
Power source CD2 lithium battery x 1 (DC3V)
Auto power shutoff function equipped (after 30 sec.)
Safety and EMC VCCI class B, Class 1M laser product (IEC60825-1:2001),
Class 1 laser product (21CFR 1040.10 and 1040.11) CE,
EMC directive, Fcc Part15 subpart B Class B, c-tick, WEEE

The information is current as of the date of publication. It is subject to change without notice.
