Nikon introduces the LASER 50 and LASER 30 Laser Rangefinders

November 10, 2020

TOKYO - Nikon Vision Co., Ltd., (Nikon Vision), a subsidiary of Nikon Corporation (Nikon), is pleased to announce the release of two new portable Laser Rangefinders, the LASER 50 and LASER 30 which can be used for a wide range of simple measurement purposes. For example, personal outdoor activities, forestry surveys, construction surveys, cable inspections for power companies, etc.

The LASER 50 has a solid design and features a high-durability and magnesium-alloy die-cast body, providing measurement capability up to a maximum distance of 1,820m/2,000 yd.
The LASER 30 similarly has a solidly designed body, and provides measurement capability up to a maximum distance of 1,460m/1,600 yd.
The most advantageous feature of both models is that there are four selectable measurement display modes. (Horizontal distance and angle mode, Actual distance and angle mode, Horizontal distance and height mode, Actual distance and height mode).

The following functions and features are common to both models:
An easier-to-view red OLED internal display, and an automatic adjustment function that automatically finetunes the display brightness according to the surrounding ambient light level, are incorporated.

Thanks to HYPER READ, the measurement response is stable and speedy regardless of the distance to the target, and measurement results are displayed in approx. 0.3 second.

Both models feature a body with a waterproof and fogproof structure, providing protection from unexpected water splashes, accidental dropping into water, and sudden weather changes.

The LASER 50 and LASER 30 enable stress-free, rapid measurement in diverse situations.

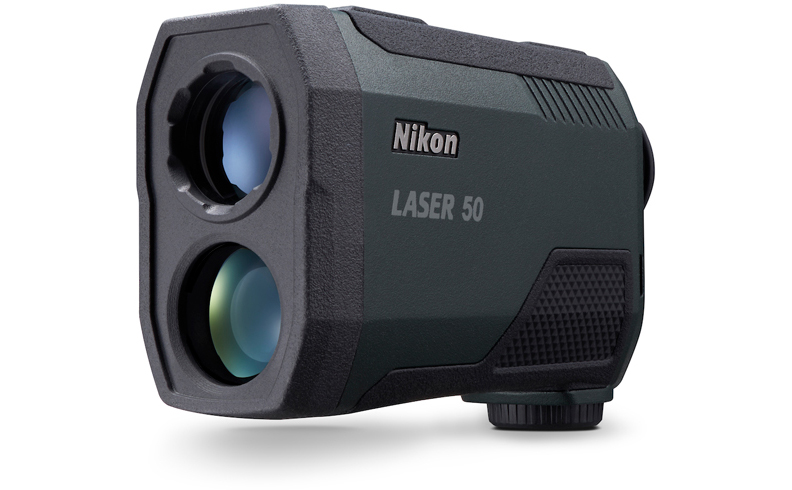

LASER 50
LASER 50

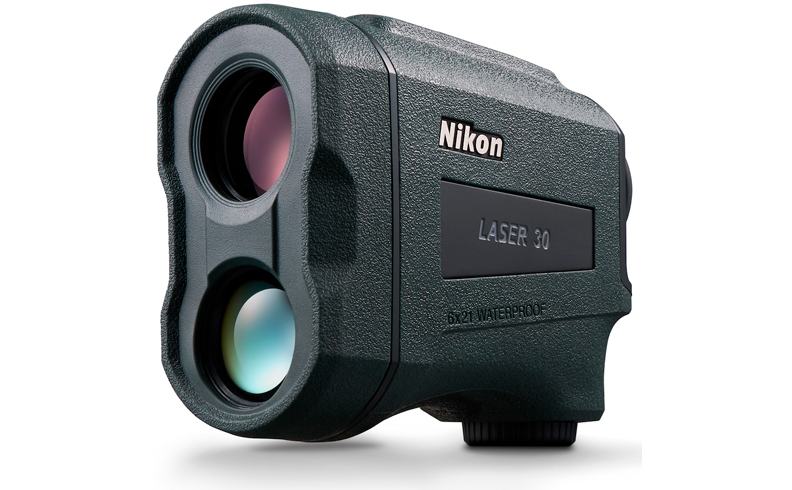

LASER 30
LASER 30

LASER 50 Key features

LASER 30 Key features

Specifications

LASER 50 LASER 30
Measurement range Distance: 9.1-1,820m/10-2,000 yd.
Angle: ±89°
Distance: 7.3-1,460m/8-1,600 yd.
Angle: ±89°
Maximum measurement distance (tree)* 1,370m/1,500 yd. 1,140m/1,250 yd.
Maximum measurement distance (deer)* 1,000m/1,100 yd.
Display (increment) Actual Distance: every 0.1m/yd.
Horizontal Distance: every 0.1m/yd.
Height: every 0.1m/yd.
Angle: every 0.1°
Accuracy**
(actual distance)
±0.75m/yd. (shorter than 600m/yd.)
±1.00m/yd. (600m/yd. and over, shorter than 1,000m/yd.)
±1.50m/yd. (1,000m/yd. and over)
±0.50m/yd. (shorter than 700m/yd.)
±1.00m/yd. (700m/yd. and over, shorter than 1,000m/yd.)
±1.50m/yd. (1,000m/yd. and over)
Magnification (x) 6
Effective objective diameter (mm) 21
Actual field of view (°) 7.5
Exit pupil (mm) 3.5
Eye relief (mm) 18.0
Dimensions (L x H x W) (mm/inch) 110x74x41/4.3x2.9x1.6 96x74x42/3.8x2.9x1.7
Weight (excluding battery) (g/oz.) 180/6.3 175/6.2
Power source CR2 lithium battery x 1 (DC 3V)
Auto power shut-off (after approx. 8 sec. unoperated)
Waterproof structure Waterproof (up to 1m/3.3 ft. for 10 minutes), fogproof
Battery chamber is rainproof — JIS/IEC protection class 4 (IPX4) equivalent
(under Nikon's testing conditions)
Laser classification IEC60825-1: Class 1M/Laser Product
FDA/21 CFR Part 1040.10: Class I Laser Product
Electromagnetic compatibility FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003
Environment RoHS, WEEE

The information is current as of the date of publication. It is subject to change without notice.
